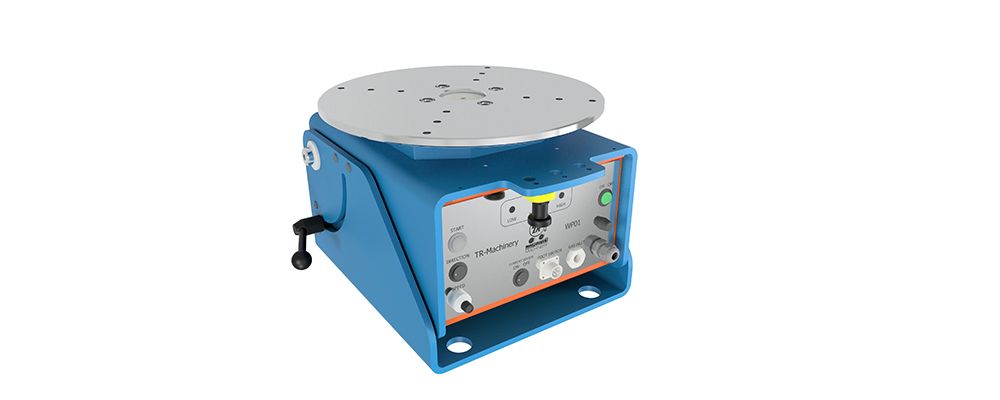

WP010
WP010
100kg
Features:
Suitable for welding, rotating and positioning small and medium-sized workpieces
Rotary table with 4x90° M10 threaded holes and 60 mm diameter centering edge
Tilting range with stepless adjustment in the range 0° - 90°
With the help of a technical gear lever, two types of gears can be selected, so a very wide speed range is available
Within the given speeds, the speed can be steplessly adjusted with a potentiometer
With the built-in welding current sensor, the rotation starts automatically when welding starts
Rotation can also be started using a pushbutton or the included footswitch
Equipped with sliding current transfer and root gas inlet
Can be built into a complete system with optional accessories
OPTIONS:
T slotted table
Stand
Pistol holder with two-way fine adjustment
For 25 mm pistol
For 38 mm pistol
Pneumatic rotating tip
Connecting aluminum profile with mounting plate
For 1000 mm centre-to-centre distance
For 1500 mm centre-to-centre distance
For 2000 mm centre-to-centre distance
Download the technical specification of the product family:
Download
Kérjük adja meg adatait a termék műszaki adatlapjának letöltéséhez!
Name
Company name
E-mail
*
ASZF
*
Tudomásul vettem a honlapon történő
adatkezelés szabályait
.
Ich habe die Regeln für
die Datenverwaltung
auf der Website zur Kenntnis genommen.
I understand
the rules of data management
at the site..
Submit
HAGYOMÁNYOS TOKMÁNY
A forgatóasztalra elhelyezhető hagyományos tokmány
Select a size
WP010
100kg
Specification
Load-carrying capacity
100 kg
Rotation speed range
0,2 - 10 rpm
Torque
100 Nm
Tilting range
0° - 90° stepless adjustment
Work table
Ø350 mm, M10 threaded holes
Welding current
250 A / 60%
Supply voltage
AC 230 V / 50 HZ
Enclosing dimensions (L x W x H)
390 x 395 x 255 mm
